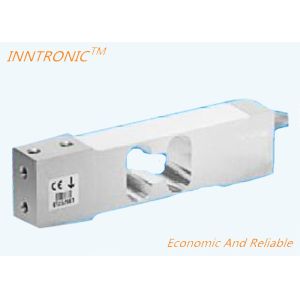

    Weight sensor IN-SP4M 200kg C3 Single Point Aluminum SS weighing Load Cell Explosion Proof For weight scale 2mv/v IP67

    ISP4M 1 to 200kg Single Point Load Cell for multi range applications
    Good quality and long life
    Special features
    − Accuracy class C3MR and
    C6MR with OIML-R60 test report
    − Off center load compensated
    (OIML R 76)
    − Degree of protection IP67
    (according to EN 60 529)
    − Shielded connection cable
    − Suitable for multi range
    applications
    Optional:
    − Explosion proof versions
    − Different cable lenghts
    − Aligned output, suitable for
    connection in parallel

    TypeISP4M
    Accuracy class1)C3MR
    Number of load cell intervals (nLC)3000
    Maximum capacity (Emax)2))kg1357101520305075100150200

    Minimum LC verification interval (vmin)

    Accuracy class C3

    g0.10.20.50.5112255101020

    Temperature effect on

    zero balance (TK0)

    Accuracy class C3


    % v.

    Cn /

    10 K


    ±0.0140±0.0093±0.0140±0.0100±0.0140±0.0093±0.0140±0.0093±0.0140±0.0093±0.0140±0.0093±0.0140
    Max. platform sizemm300 x 300450 x 450600 x 600
    Sensitivity (Cn)mV/V

    1.8 +15 %; −10 % (Option 6: A1 = 1.8 mV/V±0.1 %)

    2.0±10 % (Option 6: A = 2mV/V±0.1 %)

    Zero balance0±0.1

    Temperature effect on

    sensitivity (TKC)3)

    Temperature range

    +20 ... +40℃ [+68 ... +104℉]

    −10 ... +20℃ [+14 ... +68℉]

    % v.

    Cn /

    10 K


    ±0.0175

    ±0.0117

    Hysteresis error (dhy)3)% of Cn±0.0166
    Non-linearity (dlin)3)±0.0166
    Minimum dead load output return (DR)±0.0166
    Off center load error4)±0.0233
    Input resistance (RLC)Ω300 ... 500
    Output resistance (R0)300 ... 500 (Option 6: A = 410 Ω±0.2 Ω)
    Reference excitation voltage (Uref)V5
    Nominal range of excitation voltage (BU)1...12
    Max. excitation voltage15
    Insulation resistance (Ris) at 100 VDC> 2
    Nominal temp. range (BT)

    °C

    [°F]

    −10 ... +40 [+14 ... +104]
    Service temp. range (Btu)−10 ... +50 [+14 ... +122]
    Storage temp. range (Btl)−25 ... +70 [−13 ... +158]

    Safe load limit (EL ), at max.

    100mm eccentricity

    % of

    Emax

    150
    Lateral load limit (Elq), static

    % of

    Emax

    300
    Breaking load (Ed)300
    Deflection at Emax (snom), approx.mm< 0.5< 0.3< 0.25
    Weight (G), approx.kg0.45

    Protection class according to

    EN 60 529 (IEC 529)

    IP67

    Material: Measuring element

    Coating

    Cable sheath

    Aluminum

    Silicone rubber

    PVC
